V-Guard 600
Small in size but Powerful Airflow
Portable HEPA Filtration
For Commercial larger spaces with high air change for better coverage
How effective against SARS-CoV-2?
In the antiviral test conducted by a third-party organization in Japan, the inhabitant rate reduced tremendously, of more than 99.99% in just one hour, proven with very high antiviral performance & effectiveness against the new Coronavirus (SARS-CoV-2)
SPECIFICATION
| Product Specification | |
|---|---|
| Main Body Size (WxHxD) | 344 x 777 x 352 mm |
| Air Flow | 600 m³/Hr (Turbo) |
| Air Volume m³ | 600 / 400 / 300 / 250 / 200 |
| Noise level dBA | 58 / 55 / 50 / 46 / 43 |
| Weight | 23.5kg |
| Colour | White |
| Body Construction | Powder Coated Steel Housing |
| Control Panel | Digital |
| Power Supply | 200 – 240V, 50Hz, 1 Phase |
| Production Lead Time | 3 weeks |
| Warranty | 1 year (excluding filters) |
| 3 stages Filtration (Particles & Gas Phase) + 1 Disinfection (UV) | |
|---|---|
| Pre-Filter | Deakleen MG M5 295 x 310 x 22mm |
| Carbon Filter | TerraComb VOC 295 x 310 x 46mm |
| HEPA Filter | Virus Guard LunaCel TSV H13 295 x 295 x 292mm Removes and inactive virus by 99.99% @ 0.3 μm, microbial transmissions through the filters |
| UV-C Lamp | PHILIPS 254nm |
| Space Coverage | ACH1 (Air Change) m³/Hr |
|---|---|
| 214 m2 / 2306 ft2 | 1 ACH Clean the Air every 60 mins. |
| 107 m2 / 1153 ft2 | 2 ACH Clean the Air every 30 mins. |
| 71 m2 / 769 ft2 | 3 ACH Clean the Air every 20 mins. |
| 54 m2 / 576 ft2 | 4 ACH Clean the Air every 15 mins. |
| 43 m2 / 461 ft2 | 5 ACH Clean the Air every 12 mins. |
| 36 m2 / 384 ft2 | 6 ACH Clean the Air every 10 mins. |
| 27 m2 / 288 ft2 | 8 ACH Clean the Air every 7.5 mins. |
| 21 m2 / 231 ft2 | 10 ACH Clean the Air every 6 mins. |
| 18 m2 / 192 ft2 | 12 ACH Clean the Air every 5 mins. |
Product Application
Suitable for various types of indoor, especially for but not limited to;
- Schools, Colleges & all other Educational institutions
- Commercial buildings, offices & Financial institutions

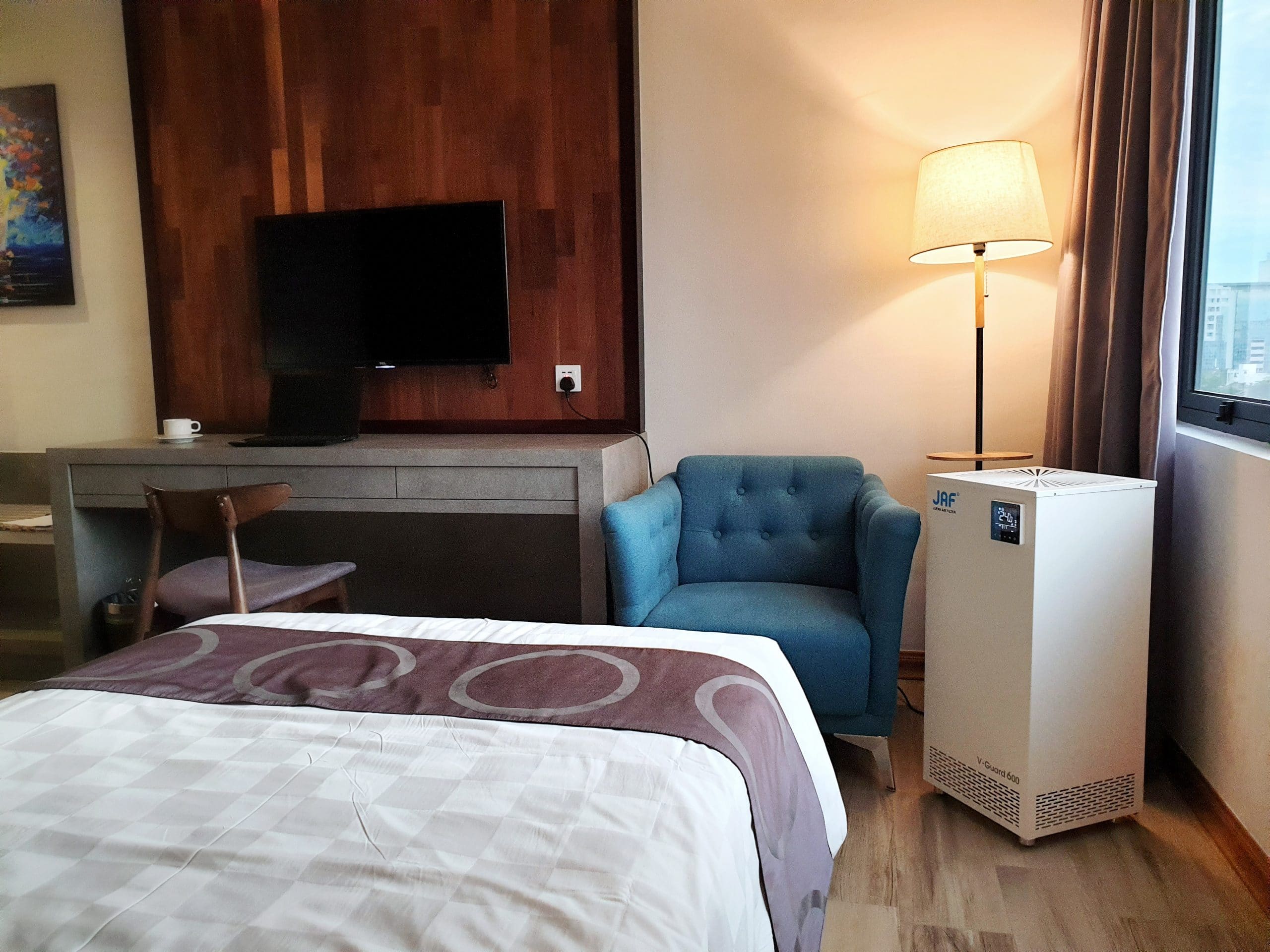

- Hotel rooms, function halls, Hospitality kiosks and rooms
- Saloon, Spa, Recreation service rooms
- Pet shops & services
- Clinics, Hospitals & Healthcare facilities

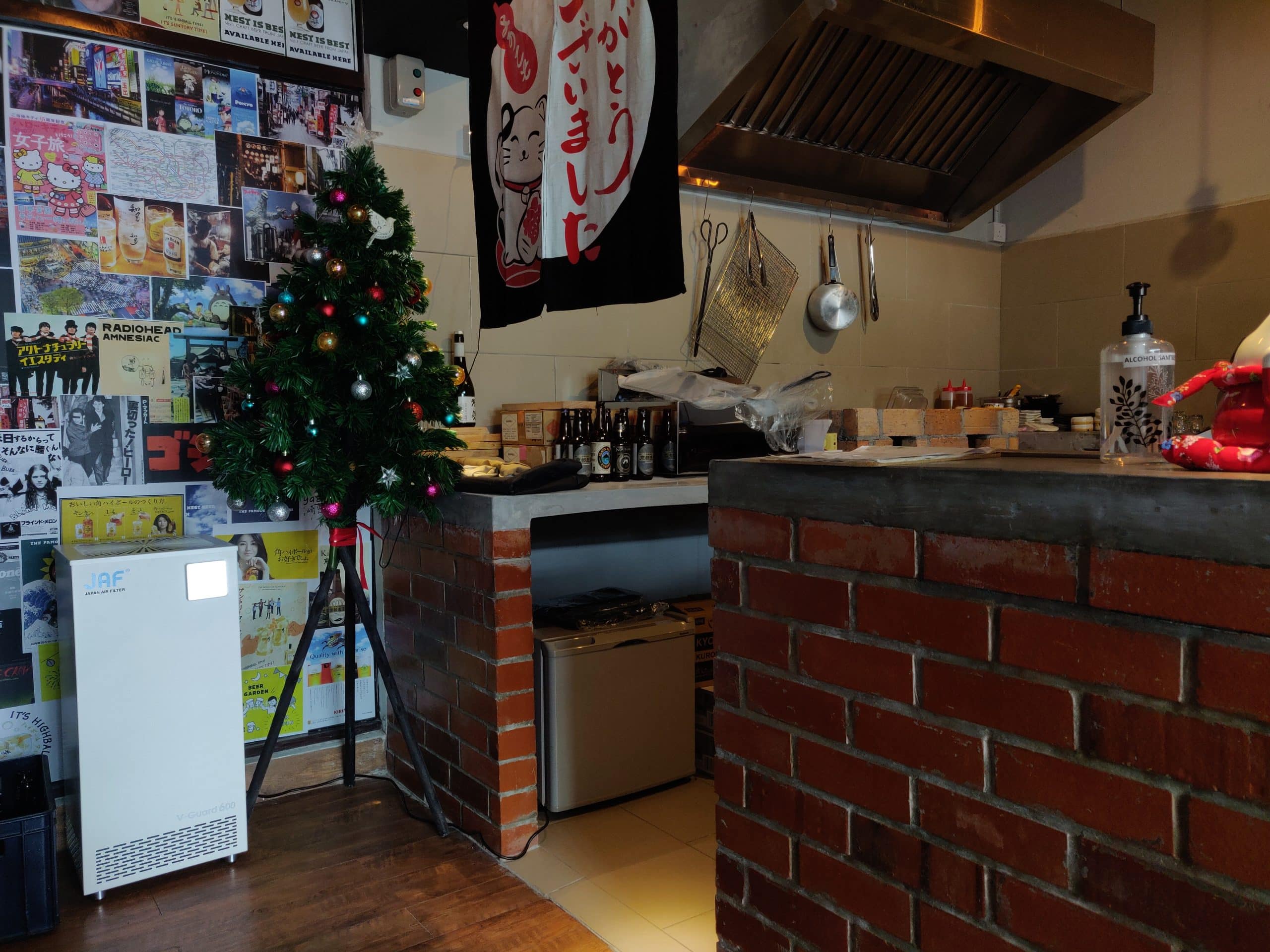

- F&B outlets; Restaurants, Café, Karaoke & etc.,
